ARF04d20 20mm Diameter Mini Tube Linear Actuator

Home / Products / Linear Actuator / ARF04d20 20mm Diameter Mini Tube Linear Actuator
PREV：ARF04d33 33mm Diameter Tube Linear ActuatorNEXT：ARF03p Mini Linear Actuator With Potentiometer

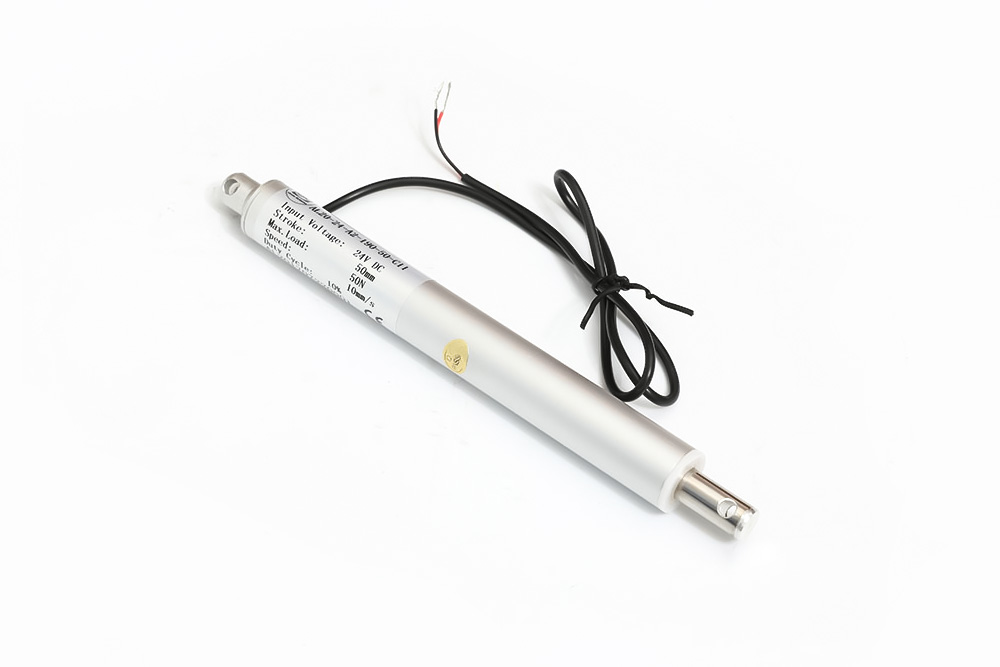

ARF04d20 20mm Diameter Mini Tube Linear Actuator

ARF04d20 20mm Diameter Mini Tube Linear Actuator

Specifications :

Input voltage: 12VDC or 24VDC

Size: diameter 20mm

Stroke:50mm/100mm/150mm/200mm/250mm, can make as your request.

Mini. installation dimension: stroke+145mm

Build-in integral limit switch, not adjustable after leaving factory.

Duty cycle : 10%, 2 minutes on/18 minutes off

Operational temperature: -26℃ to 65℃

IP class: IP56

Noise: ≤52dB

Certificates: CE & RoHS

Max. Load: 90N

Non-load speed:6mm/s

Load speed:4mm/s

Install holes: ¢ 5mm



E-mail: [email protected]
Contact Us

Product Details

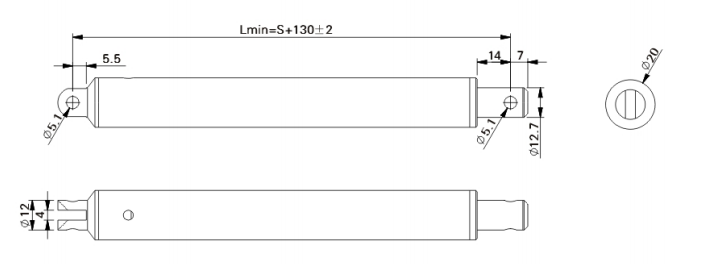

Drawings:
